Bitbucket Webhook Receiver

The Bitbucket webhook receiver responds to repo:push, pullrequest:fulfilled, and pullrequest:rejected events originating from Bitbucket Cloud repositories, and repo:refs_changed events originating from Bitbucket Server and Data Center repositories.

The receiver responds to repo:push and repo:refs_changed events by refreshing all Warehouse resources subscribed to those repositories.

The receiver responds to pullrequest:fulfilled and pullrequest:rejected events (Bitbucket Cloud) by refreshing all running Promotion resources that are waiting on the affected pull request via a git-wait-for-pr step. This enables near-instant detection of PR merges and closures instead of relying on the default polling interval.

info

"Refreshing" a Warehouse resource means enqueuing it for immediate reconciliation by the Kargo controller, which will execute the discovery of new artifacts from all repositories to which that Warehouse subscribes.

info

"Refreshing" a Promotion resource means enqueuing it for immediate reconciliation. The git-wait-for-pr step will then call the Git provider's API to detect whether the PR has been merged or closed, and proceed accordingly.

info

The Bitbucket webhook receiver also works with Bitbucket Server and Bitbucket Data Center, although some URLs in this document may need to be adjusted accordingly.

Configuring the Receiver​

A Bitbucket webhook receiver must reference a Kubernetes Secret resource with a secret key in its data map. This shared secret will be used by Bitbucket to sign requests and by the receiver to verify those signatures.

note

The following commands are suggested for generating and base64-encoding a complex secret:

secret=$(openssl rand -base64 48 | tr -d '=+/' | head -c 32)
echo "Secret: $secret"
echo "Encoded secret: $(echo -n $secret | base64)"
apiVersion: v1
kind: Secret
metadata:
  name: bb-wh-secret
  namespace: kargo-demo
  labels:
    kargo.akuity.io/cred-type: generic
data:
  secret: <base64-encoded secret>
---
apiVersion: kargo.akuity.io/v1alpha1
kind: ProjectConfig
metadata:
  name: kargo-demo
  namespace: kargo-demo
spec:
  webhookReceivers:
  - name: bb-wh-receiver
    bitbucket:
      secretRef:
        name: bb-wh-secret

Retrieving the Receiver's URL​

Kargo will generate a hard-to-guess URL from the receiver's configuration. This URL can be obtained using a command such as the following:

kubectl get projectconfigs kargo-demo \
  -n kargo-demo \
  -o=jsonpath='{.status.webhookReceivers}'

Registering with Bitbucket​

Webhooks can be registered for a single repository or, in Bitbucket Cloud, for an entire workspace.

Repository Webhooks​

To configure a single Bitbucket repository to notify a receiver of relevant events:

  1. Navigate to https://bitbucket.org/<workspace>/<repository>/admin/webhooks where <workspace> has been replaced with a Bitbucket workspace and <repository> has been replaced with the name of a repository belonging to that workspace and for which you are an administrator.

  2. Click Add webhook.

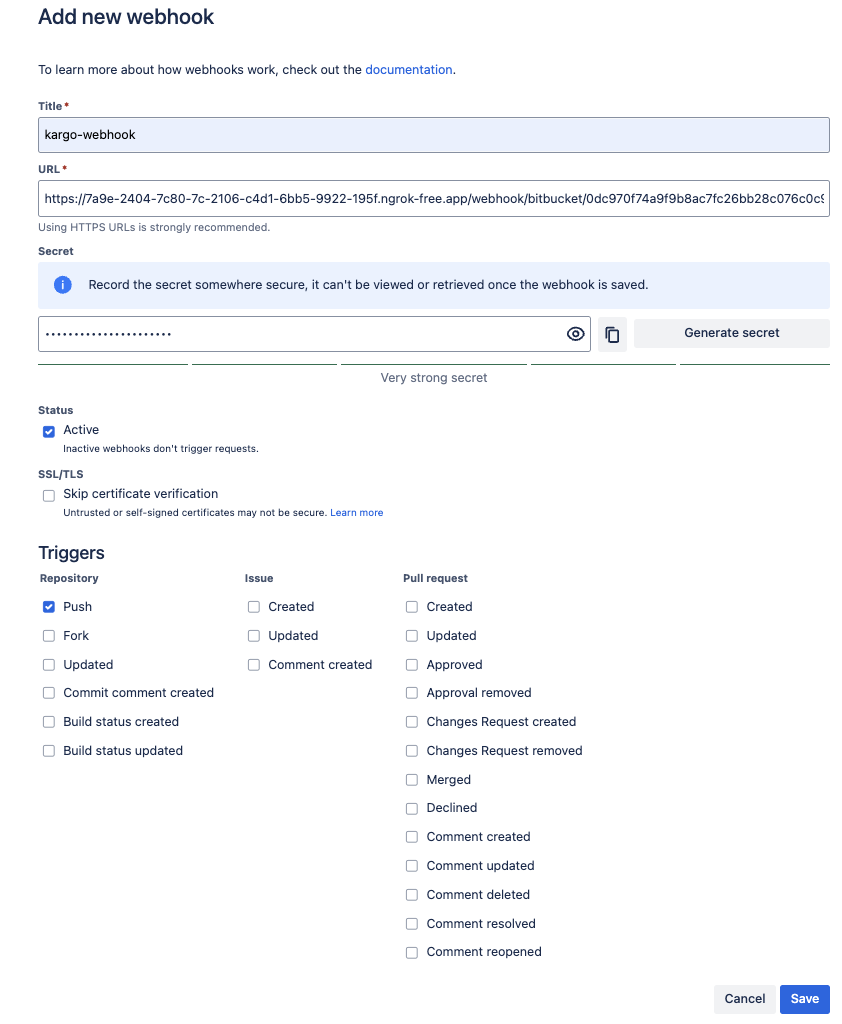

  3. Complete the Add new webhook form:

    Add New Webhook Form

    1. Enter a descriptive name in the Title field.

    2. Complete the URL field using the URL for the webhook receiver.

    3. Complete the Secret field using the (unencoded) value assigned to the secret key of the Secret resource referenced by the webhook receiver's configuration.

      danger

      Do not use the Generate secret button in the Bitbucket UI.

      Kargo incorporates the secret's value into the URL it generates for the webhook receiver. Using a secret in this field other than the one already referenced by the receiver's configuration will require revisiting that configuration and doing so will change the receiver's URL.

    4. Under Status, ensure Active is selected.

    5. Under Triggers → Repository, ensure Push is selected.

      If you use PR-based promotion workflows (i.e. promotions that include a git-wait-for-pr step), also select Merged and Declined under Triggers → Pull Request. This enables Kargo to detect PR merges and closures near-instantly instead of relying on the default polling interval.

    6. Click Save.

  4. Verify that the new webhook appears under Repository hooks.

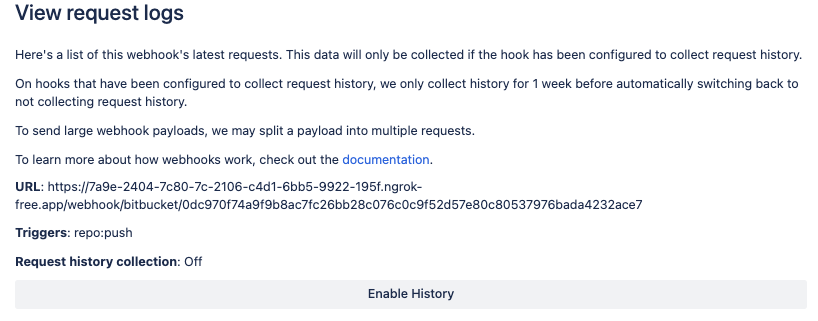

  5. If you'd like to record outbound webhook requests for troubleshooting purposes:

    1. Click the View requests link next to your webhook.

    2. Click on Enable History.

    Enable History

When these steps are complete, the repository will send events to the webhook receiver.

info

For additional information on configuring repository webhooks, refer directly to the Bitbucket Docs.

Workspace Webhooks​

A Bitbucket Cloud workspace webhook is triggered by events from all repositories belonging to that workspace, which spares you from registering the same webhook on each repository individually.

note

At the time of this writing, Bitbucket Cloud does not offer a UI for managing workspace webhooks. They can only be managed using the Bitbucket Cloud REST API, and only by owners of the workspace.

To configure all repositories in a Bitbucket Cloud workspace to notify a receiver of relevant events:

  1. Create an Atlassian API token with scopes, selecting Bitbucket as the app and granting the following scopes:

    • read:webhook:bitbucket
    • write:webhook:bitbucket
    • read:repository:bitbucket
    • read:pullrequest:bitbucket

  2. Register the webhook using a command such as the following:

    curl -X POST \
      -u "<email>:<api-token>" \
      -H "Content-Type: application/json" \
      https://api.bitbucket.org/2.0/workspaces/<workspace>/hooks \
      -d '{
        "description": "Kargo",
        "url": "<receiver-url>",
        "active": true,
        "secret": "<secret>",
        "events": [
          "repo:push",
          "pullrequest:fulfilled",
          "pullrequest:rejected"
        ]
      }'

    Replace:

    • <email> with the email address of your Atlassian account.
    • <api-token> with the API token created in the previous step.
    • <workspace> with the Bitbucket workspace.
    • <receiver-url> with the URL for the webhook receiver.
    • <secret> with the (unencoded) value assigned to the secret key of the Secret resource referenced by the webhook receiver's configuration.

    The pullrequest:fulfilled (merged) and pullrequest:rejected (declined) events are only needed if you use PR-based promotion workflows (i.e. promotions that include a git-wait-for-pr step).

  3. Verify that the new webhook is registered and that its secret is set:

    curl -u "<email>:<api-token>" \
      https://api.bitbucket.org/2.0/workspaces/<workspace>/hooks

    The response should include a webhook whose url matches the receiver's URL and whose secret_set field is true.

    note

    If the secret is omitted or empty, Bitbucket still registers the webhook but does not sign its requests, and the receiver will reject all of them with a 401 response.

When these steps are complete, every repository in the workspace will send events to the webhook receiver.

caution

If you register identical webhooks affecting a given repository at both the repository level and the workspace level, both webhooks will be triggered by applicable events in that repository.
